90 급 GGG450 PN10 DN60은 연성 주철 팔꿈치를 배수합니다

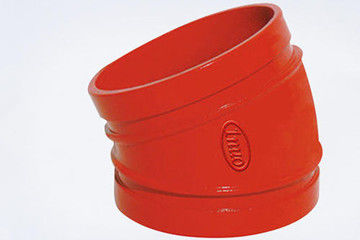

Cast iron drain pipe fittings Ductile iron elbow

Description

Ductile iron elbow is made of spheroidal graphite by spheroidizing treatment, which can improve the mechanical properties of cast iron, strengthen the plasticity and toughness, so as to obtain the elbow with higher strength than carbon steel. The comprehensive properties of nodular cast iron are close to that of steel. It is used to cast some parts with huge force and high requirements of strength, toughness and wear resistance. Nodular cast iron has become a widely used cast iron material next only to gray cast iron. The so-called "replacing steel with iron" mainly refers to ductile iron castings.

Technical data sheet

Ductile iron pipe connections Ductile iron elbow technical data sheet as below:

Specification

Standard:GB / ANSI /JIS / DIN

Material:GGG450-10 or Ductile iron

Size:DN60mm-2000mm

Characteristic

Ductile iron elbow has strong corrosion resistance. Water spray corrosion test, 90 days of corrosion is only 1 / 40 of steel pipe, is 1 / 10 of gray iron pipe. Its service life is 2 times as long as that of gray iron pipe and 5 times as long as that of ordinary steel pipe. Elongation ≥ 7% is similar to that of high carbon steel, but the elongation of gray iron is zero.

Ductile iron elbow has high strength. Tensile strength ó B ≥ 420MPa, yield strength ó s ≥ 300mpa, the same as low carbon steel, is three times of gray iron material. The strength of nodular cast iron is comparable to that of cast steel. The yield strength of nodular cast iron is 40K, while that of cast steel is only 36K.

Package

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
